Spherical Titanium Alloy Powder GR1/TC11/TA15/NiTi With Low Oxygen
And High Fluidity
Product packaging:
Sample packing: 1kg or 5kg vacuum packing
Iron drum packing; Generally 50 kg/barrel or 200 kg/barrel.
The iron drum was protected by argon gas.
If customers have special requirements, can also be packaged
according to customer requirements.
Logistics and transportation:Express, air, sea or upon customer's request
Application
Powder titanium alloy is a material made by atomizing, rotating
electrodes, or vacuum reducing qualified titanium alloy liquid
metal into powder, and then hot extruding it into rods, hot
isostatic pressing it into titanium alloy turbine disks, aircraft
keel joints, and seawater desalination devices.
Titanium and its alloys have high specific strength, good
intermediate temperature strength, corrosion resistance, and
abundant resources, making them widely used in aviation, chemical,
metallurgical, medical, marine engineering, and other fields.
Titanium and its alloys have become the main metal structural
materials for aircraft engines.
Product specifications
| Typical Product | TA1 | TC11 | NiTi | TC25 | Ti2AINb | Ti60 |
| Specifications | 15-53 | 15-53 | 0-45 | 15-53 | 15-53 | 15-53 |
Particle Size
Distribution/pm | D10 | 18-25 | 18-25 | 10-15 | 18-25 | 18-25 | 18-25 |
| D50 | 30-40 | 30-40 | 25-30 | 30-40 | 30-40 | 30-40 |
| D90 | 55-60 | 55-60 | ≤55 | 55-60 | 55-60 | 55-60 |
| Sphericity | ≥90% | ≥92% | ≥92% | ≥92% | ≥93% | ≥92% |
| Flowability/(s/50g | ≤38 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 |
| Apparent Density/(g/cm) | ≥2.4 | ≥2.4 | ≥2.4 | ≥2.4 | ≥2.4 | ≥2.4 |
| TapDensitylg/cm | ≥2.7 | ≥2.7 | ≥2.7 | ≥2.7 | ≥2.7 | ≥2.7 |
| 0xygen Connt(ppm | <1000ppm(600-1600ppm Available) |
| Preparation Method | EIGA |
| Chemical Component | Hi≤0.015
Fe≤0.2
C≤0.08
N≤0.03
060.1
Ti:Bal | AL:5.8-7.0
Mo:2.8-3.8
Zr:0.8-2.0
N≤0.05
H≤0.012
C≤0.08
51:0.2-0.35
O≤0.1
Fe≤0.25
T<Bal | Fe≤0.03
C≤0.04
i60.001
0≤0.1;
(Mn,Cr,Al)
≤0.01;
50.0S²N,H)
C60.015;
Cu≤0.005
Ii:Bal | Al:6.2-7.2
Mo:1.5-2.5
Sn:0.8-2.5
W:0.5-1.5
≤0.15
C≤0.1;O≤0.
N60.04;
H≤0.012
Si:0.1-0.25
Zr:0.8-2.5
Ii:Bal | Al:9.9-12.9
Nb:41.6-44.6
C50.1
050.1
N≤0.02
H≤0.01
Ti:Bal | Al:5.2-6.2
Sn:3.0-4.0
Zr3.0-4.0
Mo:0.2-1.0
Ta:0.2-1.5
Si:0.2-0.55
C:0.01-0.08
Nb:0.2-0.7
Ti:Bal |
|
|

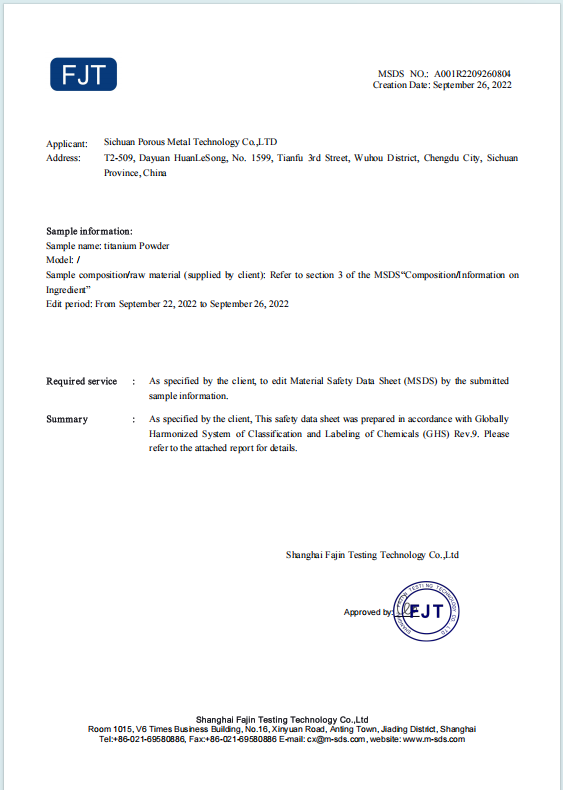

Product Quality Report
Company Profile
Sichuan Porous Technology Co., Ltd. is a specialized company that
specializes in the research and development, production, and sales
of metal porous materials such as titanium and titanium alloy
powder, titanium powder felt (TPF), and nickel powder felt (NPF).
The company is located in Zhongjiang Intelligent Manufacturing
Industrial Park, Deyang City, Sichuan Province, covering an area of
approximately 5000 square meters. The core technical team of the
company comes from Central South University, with a first-class
R&D technology team and excellent management team. After years
of research and development, a series of core patented technologies
have been formed in the production of metal powder, hydrogen film,
and hydrogen felt. The company adheres to the principle of "meeting
customer needs and exceeding customer expectations", constantly
making progress and continuous improvement. It is a high-tech
enterprise specializing in the research and development of metal
powder, hydrogen film, and hydrogen felt production. The company's
main products include HDH titanium powder, titanium alloy powder
products, and porous metal products. The annual production capacity
of titanium powder and titanium alloy powder produced by the
company is more than 200 tons. The company's products have been
widely used in powder metallurgy, titanium filter tubes, 3D
printing, MIM injection molding and other fields: titanium based
flexible gradient gas diffusion powder felt - (titanium powder felt
TPF), nickel based flexible gradient gas diffusion powder felt -
(nickel powder felt NPF) with an annual production capacity of
100000 square meters, widely used in hydrogen energy new energy
production fields such as green hydrogen (PEM, AEM) equipment and
composite electrodes.
