GR5/Ti6Al4V Spherical Titanium Alloy Powder Metal Powder Aerospace
3D Printing
Application Of GR1 Spherical Titanium Alloy Powder 3D Printing In
Laser Cladding
TA1 stands for alpha-type pure titanium material with a purity of
99.5% or more, and is one of the most commonly used pure titanium
materials. It has good toughness, corrosion resistance and
processing performance, and is widely used in aviation, aerospace,
chemical industry, medical equipment and other fields.
Particle size: 15-53um, 0-25um, 15-45um, 53-150um customized
Purity: Customized

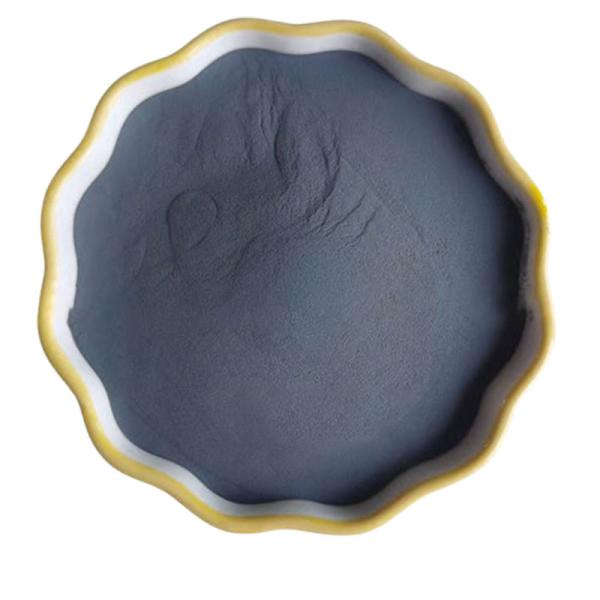

Product Appearance: Grey spherical powder;
Product features: high purity, complete specifications, controllable particle size,
easy sintering, good formability, stable quality Particle size
range: Specific production can be carried out according to customer
requirements;
Product specifications
| Typical Product | GR5(Ti-6Al-4V) |
| Specifications | 0-25 | 0-45 | 15-53 | 53-150 | 15-53 | 53-150 |
Particle Sizo
Distrnibution/μm | D10 | 7-12 | 12-17 | 18-23 | 62-67 | 20-30 | 55-65 |
| D50 | 10-15 | 27-32 | 32-37 | 82-87 | 35-40 | 95-110 |
| D90 | 18-23 | 45-50 | 55-60 | 130-140 | 50-55 | 140-155 |
| Sphericity | ≥94% | ≥93% | ≥93% | ≥93% | ≥95% | ≥95% |
| Flowability/(s/50g) | | | ≤40 | ≤35 | ≤30 | ≤25 |
| Apparent Densityi(g/c㎡) | | | 2.3-2.5 | 2.3-2.5 | 2.5-2.7 | 2.5-2.7 |
| Tap Densityll(g/c㎡) | 2.70-2.90 | 2.80-2.90 | 2.70-2.90 | | | |
| Oxygen Content/(ppm) | <1000ppm (600-1600ppm Available) |
| Tensile strength | 1120-1200 Mpa |
| ChemicalComponent | Al:5.5~6.75;V:3.5~4.5;Fe≤0.3;C≤0.08;N≤0.05;H≤0.015;Ti:Bal |
| Technology Standard | GB/T3620-2007,ASTM B348-13,Grade 5 |
Product Quality Report
Company Profile
Sichuan Porous Technology Co., Ltd. is a specialized company that
specializes in the research and development, production, and sales
of metal porous materials such as titanium and titanium alloy
powder, titanium powder felt (TPF), and nickel powder felt (NPF).
The company is located in Zhongjiang Intelligent Manufacturing
Industrial Park, Deyang City, Sichuan Province, covering an area of
approximately 5000 square meters. The core technical team of the
company comes from Central South University, with a first-class
R&D technology team and excellent management team. After years
of research and development, a series of core patented technologies
have been formed in the production of metal powder, hydrogen film,
and hydrogen felt. The company adheres to the principle of "meeting
customer needs and exceeding customer expectations", constantly
making progress and continuous improvement. It is a high-tech
enterprise specializing in the research and development of metal
powder, hydrogen film, and hydrogen felt production. The company's
main products include HDH titanium powder, titanium alloy powder
products, and porous metal products. The annual production capacity
of titanium powder and titanium alloy powder produced by the
company is more than 200 tons. The company's products have been
widely used in powder metallurgy, titanium filter tubes, 3D
printing, MIM injection molding and other fields: titanium based
flexible gradient gas diffusion powder felt - (titanium powder felt
TPF), nickel based flexible gradient gas diffusion powder felt -
(nickel powder felt NPF) with an annual production capacity of
100000 square meters, widely used in hydrogen energy new energy
production fields such as green hydrogen (PEM, AEM) equipment and
composite electrodes.
